Gaskets

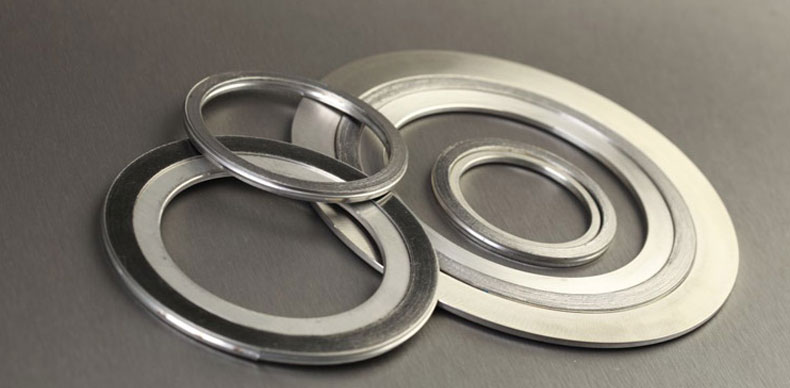

The Stainless Steel Gasket is used in systems where the two components are tubular and pipes products. The gasket takes the pull and push, so that the connection remains flexible to stress. We have supply stockist of SS Ring Gasket. Made up of raw material in grade of stainless steel 304, 316, 321 and high nickel alloy, inconel and monel, etc.
These Flat Ring Gaskets products are sourced from the reliable vendors and are developed using excellent quality metal alloy like stainless steel, nickel and other basic material. Please feel free to contact us for more details on the different gaskets like the Stainless Steel Ring Gasket and the pricing information.
Widely acknowledged for durable finish standards, dimensional accuracy, corrosion resistant finish, sturdy construction and high tensile strength these products are used in various industrial sectors like electronic, construction, automotive, ship building, aerospace, automobile, electrical, etc.
Structure Steel Specification
| Standard | ASME, ASTM |
| Size | 1/2" - 60" |
| Thickness | 3.2mm, 4.5mm, 6.4mm,7.3mm |
| Type | Octagonal Rings, Ring Joint Gasket, Flat Ring Gasket, Spiral Wound Gasket, Serrated Gasket, RTJ Gaskets, graphite Filler |
| Material | 304, 304L, SS 316, 316L |
Stainless Steel Gasket Technical Standards
| RAW MATERIAL | MAX. HARDNESS | TEMPERATURE | ABBREVIATIONSMARKER | |
| BRUCELLOSIS | ROCKWELL | |||
| SOFT IRON | 90 | 56 | -60 540 | D |
| LOW CB STEEL | 120 | 68 | -40 540 | S |
| 304SS | 160 | 83 | -250 700b | 304 |
| 304LSS | 150 | 83 | -250 450 | 304L |
| 316SS | 160 | 83 | -200 700b | 316 |
| 316LSS | 150 | 83 | -200 450 | 316L |
| 321SS | 160 | 83 | -200 700b | 321 |
| 347SS | 160 | 83 | -200 700b | 347 |
| 410SS | 170 | 86 | -40 650 | 410 |
| 5Cr-0.5Mo | 130 | -29 650 | ||
| COPPER | 80 | -100 315 | ||
| ALUMINUM | 35 | -200 425 | ||
| INCONEL 600 | 150 | -100 1095 | ||
| INCOLOY 825 | 160 | -100 1095 | ||
| MONEL 400 | 150 | -100 760 | ||
| TITANIUM | 215 | -200 540 | ||
| NICHEL 200 | 110 | -200 760 | ||
| HASTELLOY C276 | 200 | -100 1095 | ||
